A500 Three-Color Light Reconnaissance Quadcopter Uav
A500+XC30-
1. Autonomous flight: autonomous flight according to the ground station software plan (remote control can be used for emergency conditions).
2. Low voltage protection, can autonomously warn, return, and land.
3. Three-axis stabilization gimbal.

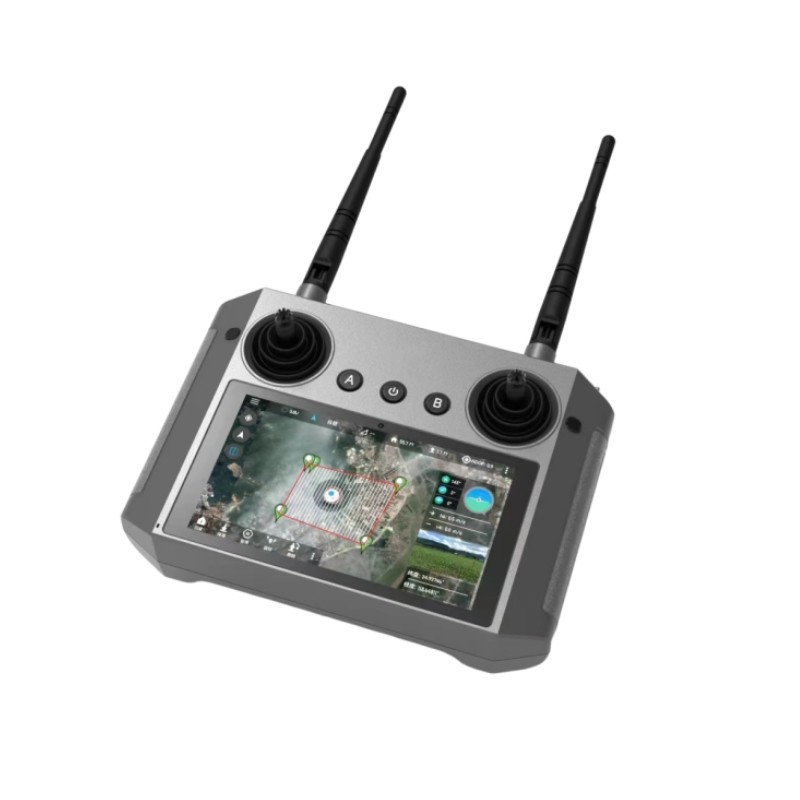

4. Matching ground station software, real-time monitoring of equipment working status.
5. Terrain-like flight function.
6. Support ground station software online firmware upgrade.

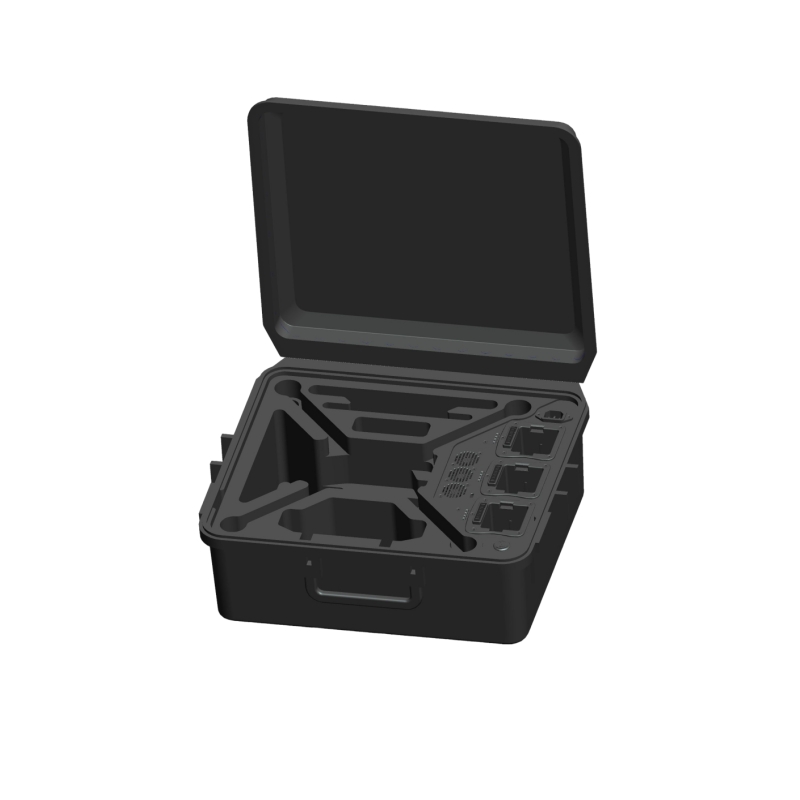

7. Configure charging, transportation and storage integrated box.
8. Support single Beidou navigation.
9. Support RTK function, PPP satellite-based enhanced high-precision navigation.
10. Support software customization requirements.
11. Equipped with photo image data encryption function.
12. Equipped with wireless reading of image data.
13. The image processor has 6TOP computing power and supports the deployment of edge AI algorithm models.
-
Drone:
1. Endurance: 50±5 minutes (with three-light pod mounted).
2. Flight altitude: ≥5000 m.
3. Maximum control radius: 7km (visual clearance environment).
4. Maximum lifting speed: 4m/s for lifting and 3m/s for lowering.
5. Maximum cruising speed: 15m/s.
6. RTK accuracy: horizontal: 10mm+1ppm, vertical: 20mm+1ppm.
7. Communication frequency band: 2.4GHz.
Camera:
1. Wide-angle camera:
Image sensor ≥1/2""CMOS, effective pixels ≥48 million.
Equivalent focal length ≥30mm, maximum photo size ≥5184×3888.
Video resolution ≥1080p.
2. Telephoto camera:
Image sensor ≥1/2""CMOS, effective pixels ≥12 million.
Digital zoom ≥8 times, equivalent focal length ≥165mm.
3. Thermal imaging camera:
Uncooled vanadium oxide (VOx) sensor. Temperature measurement method: point temperature measurement, regional temperature measurement.
Video resolution: 640×512. Sensitivity ≤40mk.
Lens focal length: 13mm. Pixel pitch ≤12 microns.
Temperature measurement range: -20℃ to 150℃ (high gain mode), 0℃ to 500℃ (low gain mode).
Gimbal:
1. Three-axis stabilization.
2. Gimbal working mode: heading follow (default), heading lock.
3. Gimbal control mode: speed control.
4. Control range: pitch -135°~45°, heading ±60°, roll ±45°.
